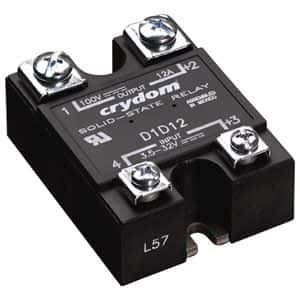

Solid State Relay (SSR) with 12A AC/DC output and 32V DC control voltage. Features 400V DC output voltage rating, 2.5kV isolation voltage, and a 12A load current capacity. Operates from -20°C to 80°C and is RoHS compliant. Mounting options include surface mount, panel, and screw termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom D4D12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom D4D12 technical specifications.
| Approvals | CE |
| Control Voltage | 32V |
| Current Rating | 12A |
| Depth | 58.4mm |
| Height | 23mm |
| Input Current | 28mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Load Current | 12A |
| Max Input Current | 28mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 12A |
| Max Output Voltage | 400V |
| Max Supply Voltage (DC) | 400V |
| Min Supply Voltage (DC) | 0V |
| Max Voltage Rating (DC) | 400V |
| Mount | Surface Mount, Panel, Screw |
| Operating Supply Voltage | 400V |
| Output Current | 12A |
| Output Voltage | 400V |
| Package Quantity | 10 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 1-DC Series |
| Termination | Screw |
| Throw Configuration | SPST |
| DC Rated Voltage | 400V |
| Width | 45.7mm |
| RoHS | Compliant |
