PackageModule
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom D53TP50D-10 technical specifications.
General
Package/Case
Module
Height
30mm
Input Current
10mA
Input Type
DC
Isolation Voltage
4kV
Lead Free
Lead Free
Length
103.8mm
Load Current
50A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Voltage
530V
Max Surge Current
625A
Mount
Panel, Chassis Mount, Screw
Package Quantity
10
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
53TP
Termination
Screw
Throw Configuration
3PST
Width
75mm
Compliance
RoHS
Compliant
Datasheet
Crydom D53TP50D-10 Datasheet
Download the complete datasheet for Crydom D53TP50D-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

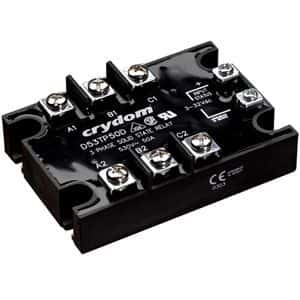

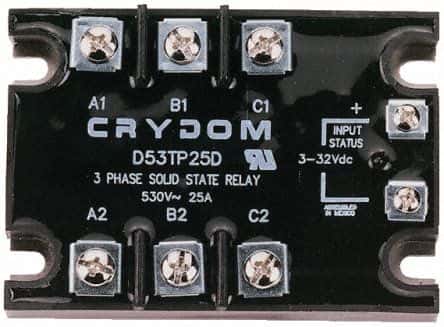

Product Images
