AC & DC Output Solid State Relay featuring a 1A DC output current and 60V DC output voltage. This relay operates with a 3V to 60V DC input voltage range and a 270 Ohm input impedance. It offers 4kV isolation voltage, a 150µs turn-on delay, and a 50µs turn-off delay. The component is housed in a SIP package with through-hole mounting and PC pin termination, measuring 24.1mm in length and width, and 12.7mm in height.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Crydom DO061B-B technical specifications.
General
Package/Case
SIP
Height
12.7mm
Input Impedance
270R
Input Type
DC
Isolation Voltage
4kV
Lead Free
Lead Free
Leakage Current
200uA
Length
24.1mm
Load Current
1A
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Output Current
1A
Max Output Voltage
60V
Max Supply Voltage (DC)
60V
Min Supply Voltage (DC)
3V
Max Supply Voltage
60V
Min Supply Voltage
3V
Max Surge Current
5A
Mount
Through Hole
Operating Supply Voltage
60V
Output Current
1A
Output Voltage
60V
Package Quantity
20
Packaging
Bulk
Pin Length
6.3mm
Reach SVHC Compliant
No
Relay Type
Relay
RMS Current (Irms)
1A
RoHS Compliant
Yes
Series
DO
Termination
PC Pin
Throw Configuration
SPST
Turn-Off Delay Time
50us
Turn-On Delay Time
150us
Width
24.1mm
Compliance
RoHS
Compliant
Datasheet
Crydom DO061B-B Datasheet
Download the complete datasheet for Crydom DO061B-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

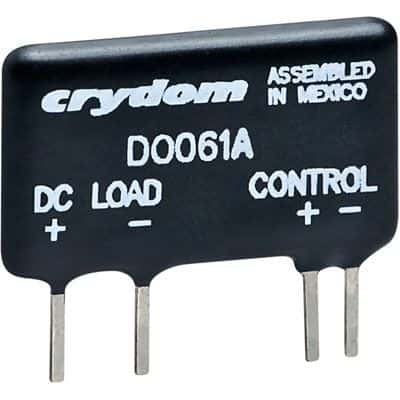

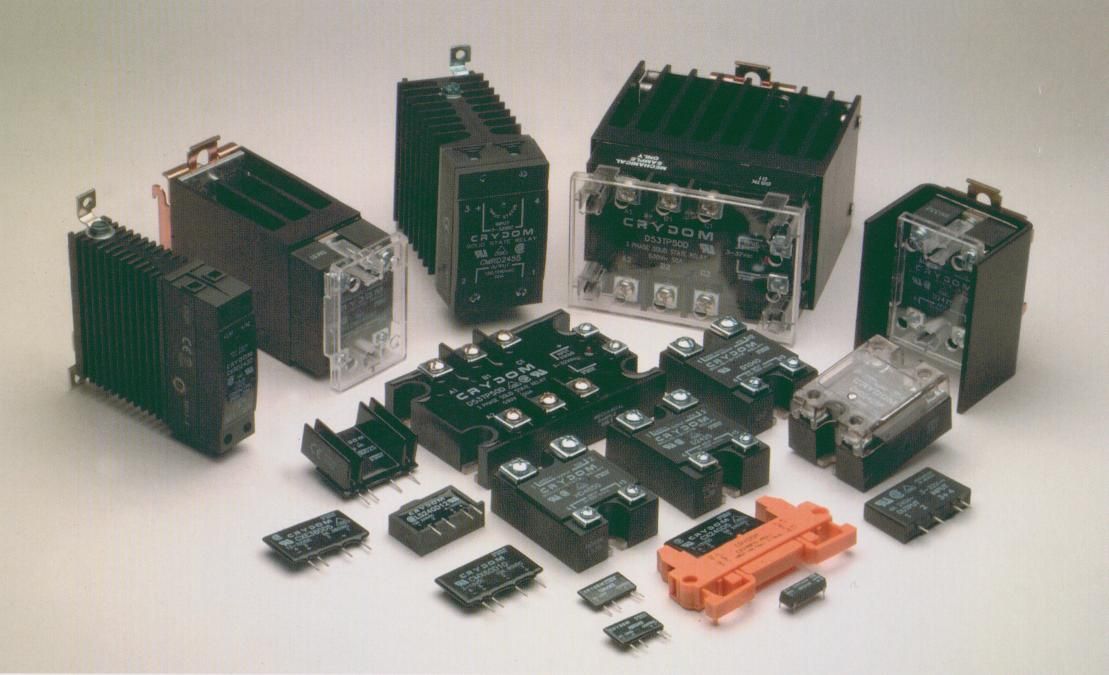

Product Images
