Technical Specifications

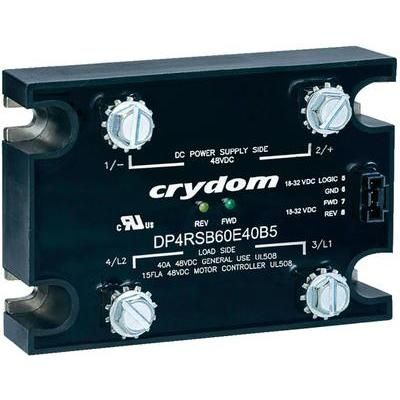

Crydom DP4RSA60E60 technical specifications.
General
Depth
73.5mm
Height
29.1mm
Isolation Voltage
2.5kV
Length
104mm
Load Current
60A
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Supply Voltage (DC)
48V
Min Supply Voltage (DC)
1V
Mount
Panel
Operating Supply Voltage
32V
Package Quantity
5
Package Style
MODULE
Reach SVHC Compliant
No
Series
DP4R
Supply Current
25mA
Termination
Screw
Throw Configuration
3PST
Width
73.5mm
Compliance
RoHS
Compliant
Datasheet
Crydom DP4RSA60E60 Datasheet
Download the complete datasheet for Crydom DP4RSA60E60 to view detailed technical specifications.
