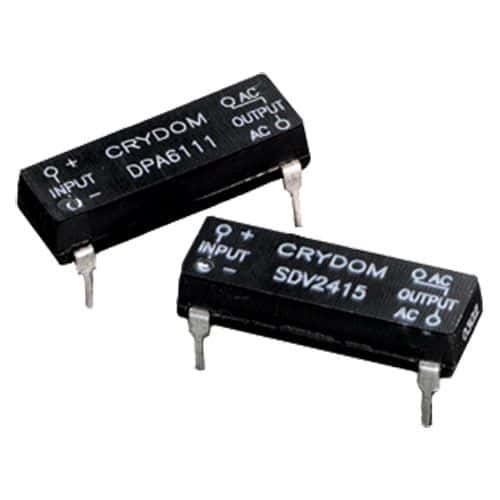

Solid State Relay with 1A AC output and 35mA DC input. Features 280V AC maximum output voltage and 10V control voltage. Mounts via PCB through-hole with solder termination. Offers 3.75kV isolation voltage and operates within a -30°C to 80°C temperature range. UL, CSA, and CE approved, RoHS compliant, and housed in a 16-pin PDIP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom DPA6111 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE |
| Package/Case | PDIP |
| Control Voltage | 10V |
| Current Rating | 1A |
| Height | 4.8mm |
| Input Current | 35mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Length | 21.6mm |
| Load Current | 1A |
| Max Input Current | 35mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 1A |
| Max Output Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 20V |
| Max Voltage Rating (AC) | 280V |
| Mount | PCB, Through Hole |
| Output Current | 1A |
| Output Voltage | 280V |
| Package Quantity | 22 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DPA |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 280V |
| Width | 6.7mm |
| RoHS | Compliant |
