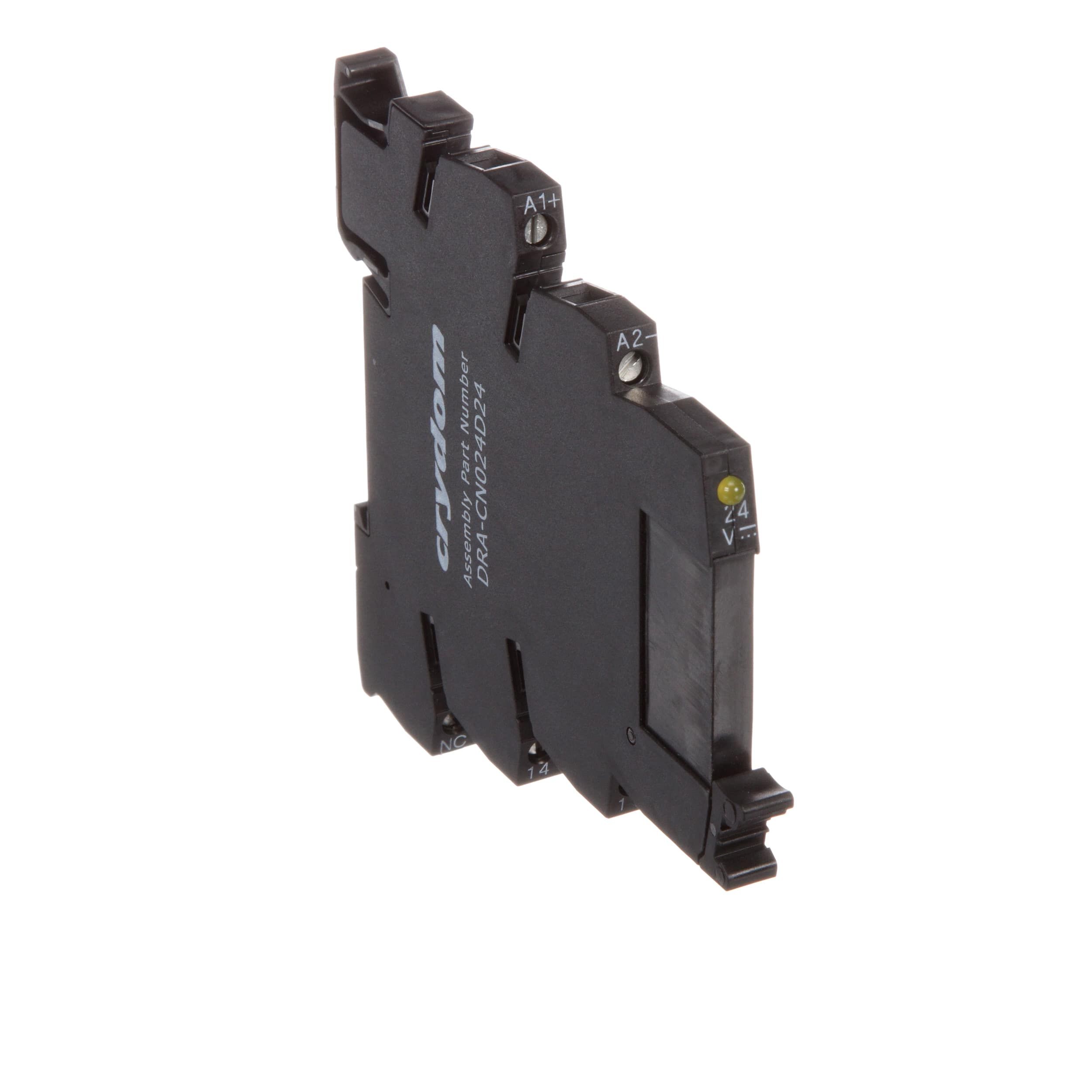

Solid State Relay with DC input and DC output. Features a 3.5A load current at 24V DC output voltage, controlled by a 9mA DC input signal up to 30V. Offers 2.5kV isolation voltage and a 3.5A maximum output current. Designed for DIN rail mounting with screw termination, operating within a -25°C to 60°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom DRA-CN024D24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom DRA-CN024D24 technical specifications.
| Package/Case | Module |
| Control Voltage | 30V |
| Depth | 6.1mm |
| Height | 92.6mm |
| Input Current | 9mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Length | 80mm |
| Load Current | 3.5A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 3.5A |
| Max Output Voltage | 24V |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 0V |
| Max Surge Current | 9A |
| Max Voltage Rating (DC) | 24V |
| Mount | DIN Rail |
| Operating Supply Voltage | 24V |
| Output Current | 3.5A |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | DRACN |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 6.1mm |
| RoHS | Compliant |
