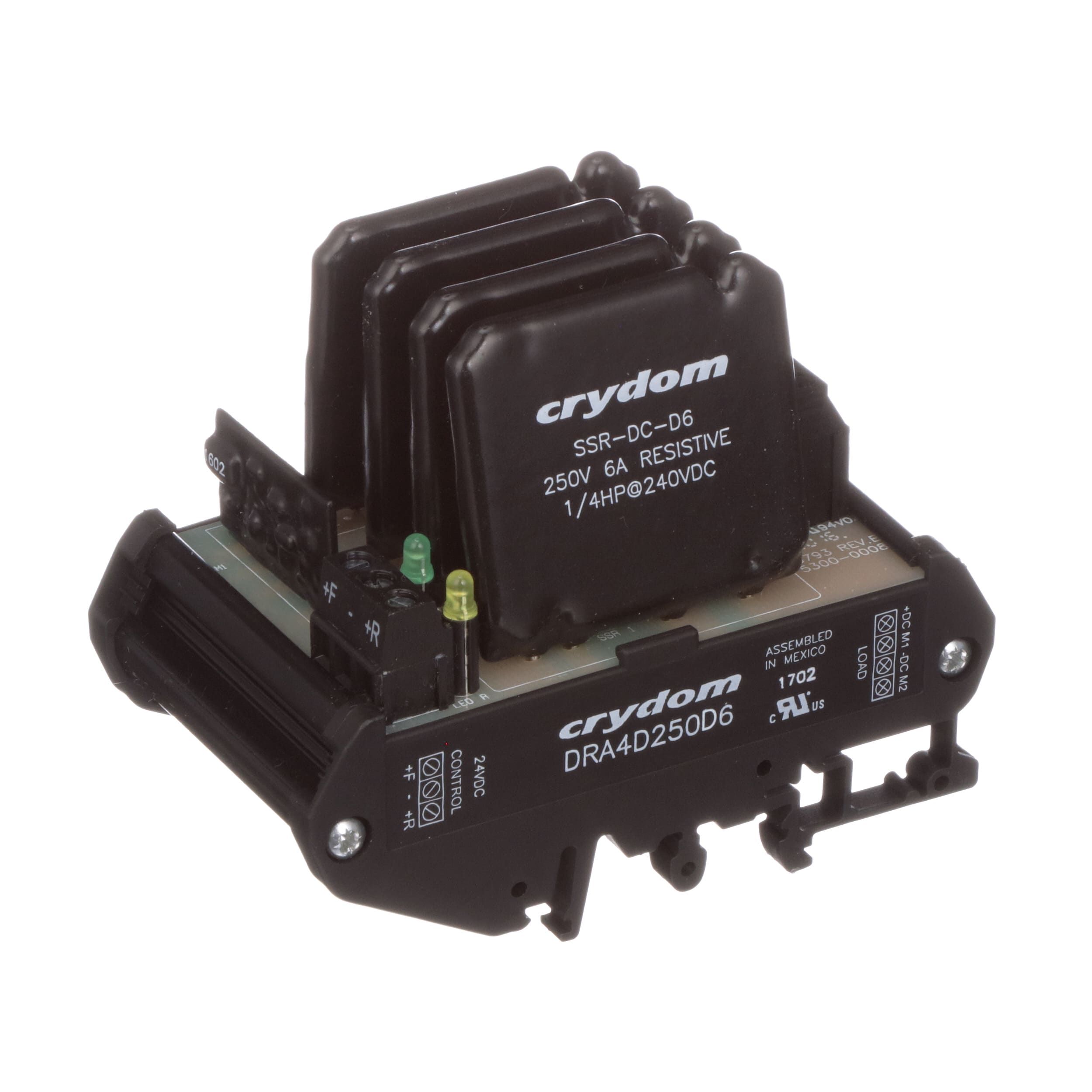

AC & DC Output Solid State Relay featuring a 6A load current rating and 250V DC output voltage. This module-style relay operates with a 15V DC input, drawing a maximum of 24.5mA. It offers 2.5kV isolation voltage and is designed for DIN rail mounting with screw termination. Approvals include CE, CUL, and IEC, with an operating temperature range of -30°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom DRA4D250D6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom DRA4D250D6 technical specifications.
| Approvals | CE, CUL, IEC |
| Package/Case | Module |
| Current Rating | 6A |
| Depth | 54.1mm |
| Height | 73.9mm |
| Input Current | 24.5mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Length | 89.6mm |
| Load Current | 6A |
| Max Input Current | 24.5mA |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 6A |
| Max Output Voltage | 250V |
| Max Supply Voltage (DC) | 250V |
| Min Supply Voltage (DC) | 1V |
| Mount | DIN Rail |
| Operating Supply Voltage | 15V |
| Output Current | 6A |
| Package Quantity | 5 |
| Package Style | MODULE |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| Series | DRA4D |
| Supply Current | 24.5mA |
| Termination | Screw |
| Throw Configuration | 3PST, SPST, DPDT |
| Turn-On Delay Time | 22ms |
| Voltage Rating (AC) | 250V |
| Width | 54.1mm |
| RoHS | Compliant |
