AC & DC Output Solid State Relay featuring a 20A load current capacity and a 280V AC maximum output voltage. This SPST relay operates with a DC input voltage range of 14V and requires a minimum input current of 9.2mA. It offers 3.75kV isolation voltage and is designed for panel or chassis mounting with screw terminals. The component is RoHS compliant and operates within a temperature range of -30°C to 80°C.
PackageModule
Current Rating12A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom EL240A20R-12 technical specifications.
General
| Approvals | UL, CE |
| Package/Case | Module |
| Current Rating | 12A |
| Height | 26mm |
| Input Current | 9.2mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Length | 36mm |
| Load Current | 20A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 24V |
| Max Supply Voltage | 280V |
| Min Supply Voltage | 24V |
| Max Voltage Rating (AC) | 280V |
| Mount | Panel, Chassis Mount, Screw |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | EL |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 280V |
| Weight | 0.507945oz |
| Width | 21mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom EL240A20R-12 Datasheet
Download the complete datasheet for Crydom EL240A20R-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

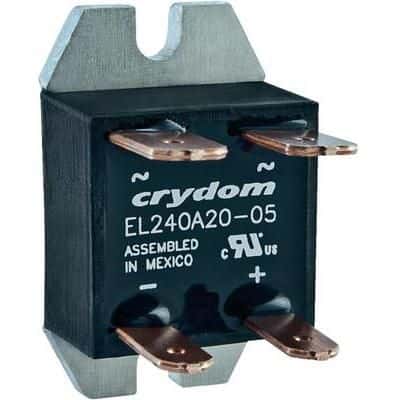

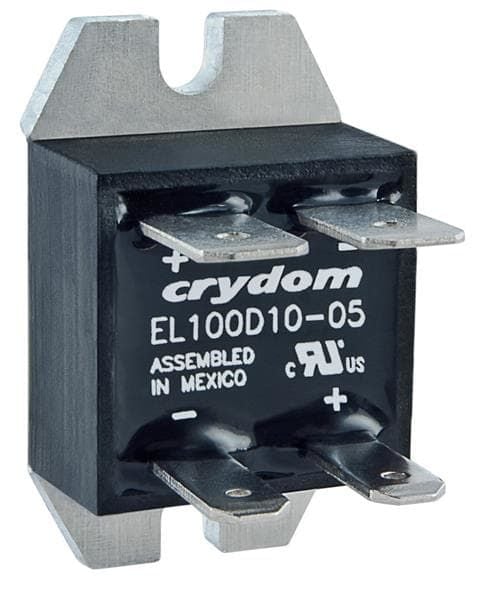

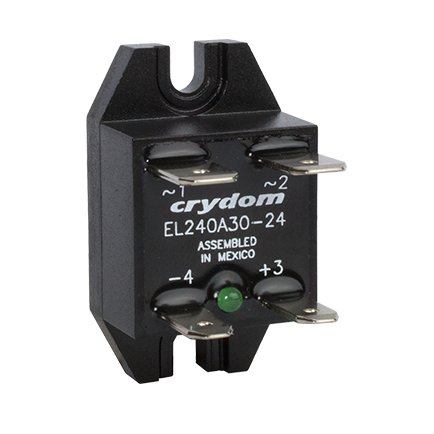

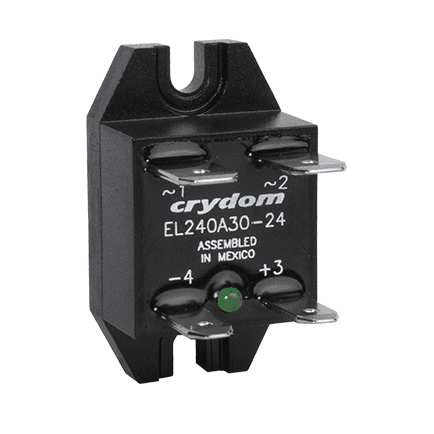

Product Images
