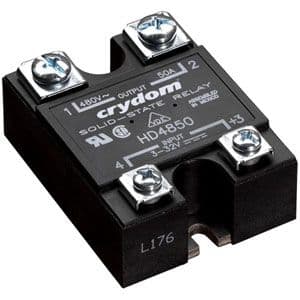

AC output solid state relay with a 50A load current rating and a maximum output voltage of 530V AC. Features AC input with a 4mA input current and 10mA input current rating. Offers 4kV isolation voltage and operates within a temperature range of -40°C to 80°C. Panel or chassis mountable with screw termination, this SPST relay has a turn-on delay time of 10ms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom HA4850-10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 50A |
| Depth | 19.8mm |
| Height | 58.4mm |
| Input Current | 4mA |
| Input Type | AC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Load Current | 50A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50A |
| Max Output Voltage | 530V |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 50A |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | HA |
| Termination | Screw |
| Throw Configuration | SPST |
| Turn-On Delay Time | 10ms |
| RoHS | Compliant |
