Technical Specifications
Crydom HD4890-10 technical specifications.
General
| Depth | 45.7mm |
| Height | 23mm |
| Input Current | 12mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 58.4mm |
| Load Current | 90A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 90A |
| Max Output Voltage | 530V |
| Max Power Dissipation | 500mW |
| Mount | Panel, Chassis Mount, Screw |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Screw |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Crydom HD4890-10 Datasheet
Download the complete datasheet for Crydom HD4890-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

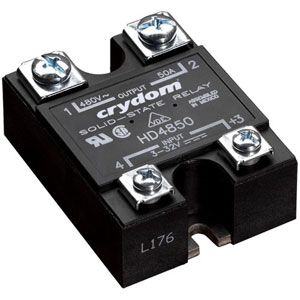

Product Images
