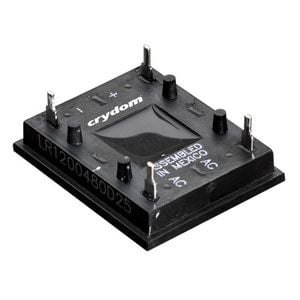

AC & DC Output Solid State Relay, featuring a 25A load current rating and a maximum output voltage of 530V AC. This SPST relay accepts a 32V DC input with a 9mA input current and operates within a temperature range of -30°C to 80°C. The module package, designed for through-hole or PCB mounting with solder termination, offers a low 8pF capacitance. Approvals include UL and CE, with RoHS compliance and lead-free construction.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom LR1200480D25R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CE |
| Capacitance | 8pF |
| Package/Case | Module |
| Current Rating | 25A |
| Height | 12.7mm |
| Input Current | 15mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 35.1mm |
| Load Current | 25A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 25A |
| Max Output Voltage | 530V |
| Mount | Through Hole, PCB |
| Package Quantity | 14 |
| Packaging | Bulk |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | LR |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 530V |
| Width | 28.4mm |
| RoHS | Compliant |
