AC & DC Output Solid State Relay featuring a 40A load current and 530V maximum output voltage. This SPST relay accepts a 9mA DC input signal, with a maximum input current of 15mA. Designed for through-hole mounting with PC pin termination, it is RoHS compliant and lead-free.
PackageModule
MountingThrough Hole
Quick Jump:
Technical Specifications
Crydom LR1200480D40 technical specifications.
General
| Package/Case | Module |
| Input Current | 15mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Load Current | 40A |
| Max Output Current | 40A |
| Max Output Voltage | 530V |
| Mount | Through Hole |
| Package Quantity | 14 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | LR |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 28.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom LR1200480D40 Datasheet
Download the complete datasheet for Crydom LR1200480D40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

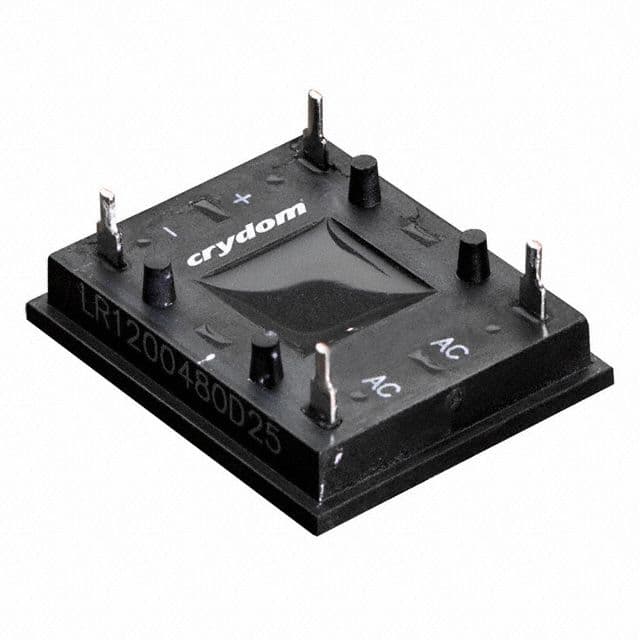

Product Images
