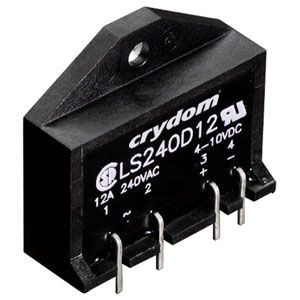

The LSE240D12 is a solid state relay with a maximum output voltage of 280V and a maximum load current of 12A. It has a throw configuration of SPST and is mounted through a hole. The relay operates within a temperature range of -30°C to 80°C and is RoHS compliant. It has an isolation voltage of 2.5kV and an input current of 15mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom LSE240D12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Load Current | 12A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
