Solid State Relay with 100A load current and 75V DC output voltage. Features a 12mA DC input current and 2.5kV isolation voltage. Panel or chassis mountable with screw termination. Operating temperature range from -30°C to 80°C. RoHS compliant.
Current Rating100A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom LVD75F100H technical specifications.
General
Current Rating
100A
Height
22.9mm
Input Current
12mA
Input Type
DC
Isolation Voltage
2.5kV
Length
58.4mm
Load Current
100A
Max Input Current
12mA
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Output Current
100A
Max Output Voltage
75V
Mount
Panel, Chassis Mount, Screw
On-State Resistance
5mR
Operating Supply Voltage
75V
Output Current
100A
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
LVD
Termination
Screw
Throw Configuration
SPST
Weight
3.527396oz
Compliance
RoHS
Compliant
Datasheet
Crydom LVD75F100H Datasheet
Download the complete datasheet for Crydom LVD75F100H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

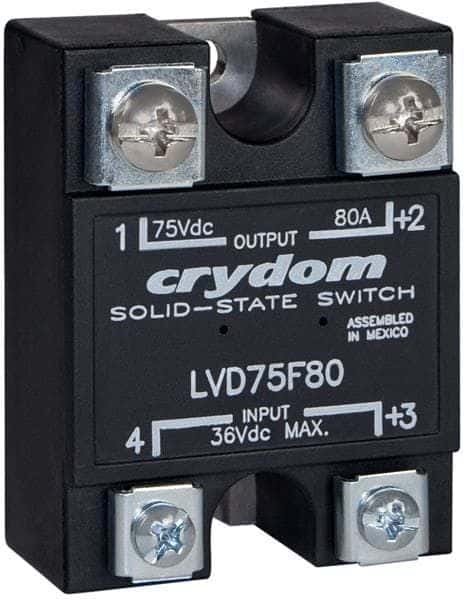

Product Images
