Technical Specifications
Crydom M50100TB1600 technical specifications.
General
| Package/Case | M |
| Current Rating | 100A |
| Forward Current | 100A |
| Height | 0.949inch |
| Lead Free | Lead Free |
| Length | 2.263inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6kV |
| Mount | Surface Mount, Screw |
| Output Current | 100A |
| Package Quantity | 5 |
| Primary Type | MODULE |
| Reach SVHC Compliant | No |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | M50 Diode Series |
| DC Rated Voltage | 1.6kV |
| Weight | 5.573286oz |
| Width | 1.748inch |
Compliance
| RoHS | Compliant |
Datasheet
Crydom M50100TB1600 Datasheet
Download the complete datasheet for Crydom M50100TB1600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

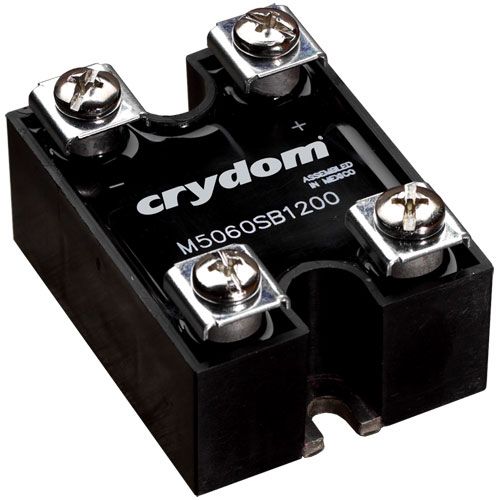

Product Images
