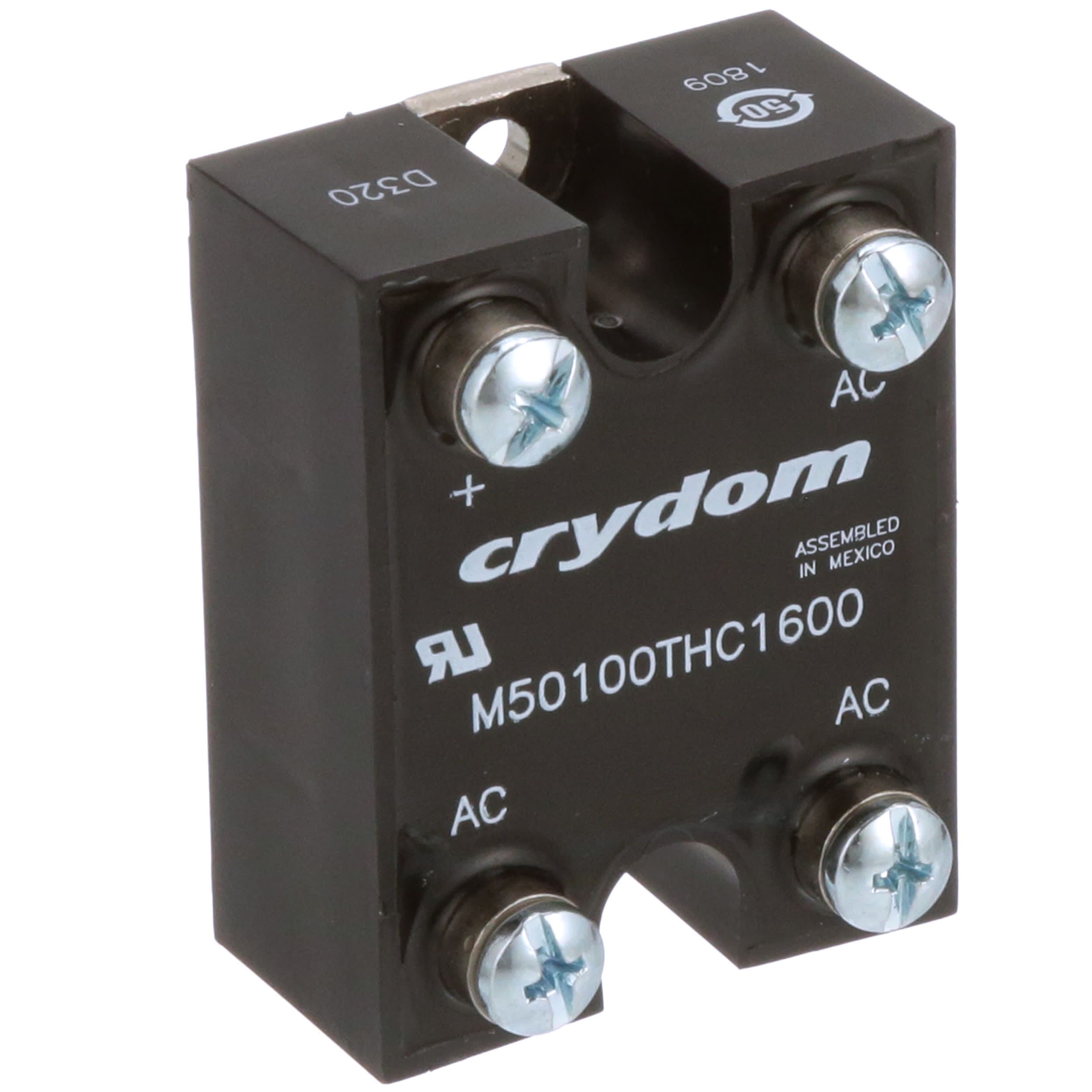

The M50100THC1600 is a general purpose rectifier diode from Crydom with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It has a maximum repetitive reverse voltage of 1.6kV and a peak non-repetitive surge current of 1.5kA. The diode is available in a module package with a chassis mount, surface mount, and screw mount option. It is RoHS compliant and part of the M50 diode series.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom M50100THC1600 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 100A |
| Package/Case | M |
| Diode Type | RECTIFIER |
| Forward Current | 100A |
| Height | 0.949inch |
| Length | 2.263inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6kV |
| Max Reverse Voltage (DC) | 1.6kV |
| Mount | Chassis Mount, Surface Mount, Screw |
| Output Current | 100A |
| Package Quantity | 10 |
| Packaging | Bulk |
| Peak Non-Repetitive Surge Current | 1.5kA |
| Primary Type | MODULE |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 1.6kV |
| RoHS Compliant | Yes |
| Series | M50 Diode Series |
| Width | 1.748inch |
| RoHS | Compliant |
