Technical Specifications
Crydom M505012V technical specifications.
General
| Package/Case | Module |
| Current Rating | 50A |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Chassis Mount, Screw |
| Package Quantity | 10 |
| Packaging | Bulk |
| RMS Current (Irms) | 50A |
| RoHS Compliant | Yes |
| Series | M50 Series |
| DC Rated Voltage | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Crydom M505012V Datasheet
Download the complete datasheet for Crydom M505012V to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

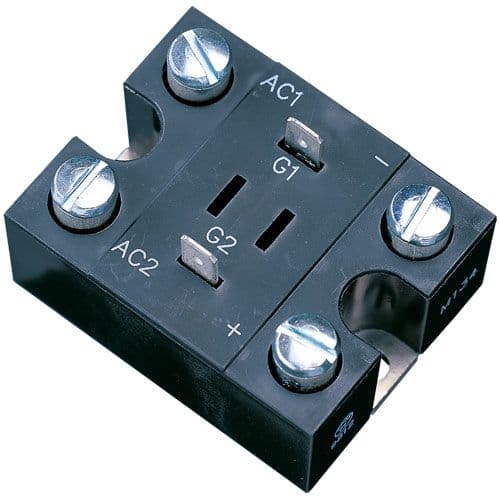

Product Images
