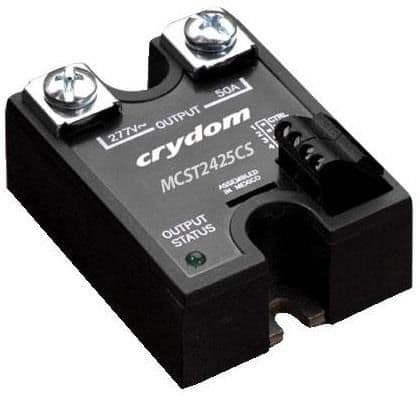

This solid state relay is a DC input device with a maximum operating temperature range of -20 to 80°C and a maximum load current of 90A. It is available in a plastic package with a screw termination and is RoHS compliant. The relay is designed for panel or chassis mount and is part of the MCS series. It has a SPST throw configuration and is lead free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom MCSP1290AS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Input Type | DC |
| Lead Free | Lead Free |
| Load Current | 90A |
| Max Input Current | 30mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Chassis Mount, Screw |
| Package Quantity | 10 |
| Packaging | Bulk |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | MCS |
| Termination | Screw |
| Throw Configuration | SPST |
| RoHS | Compliant |
