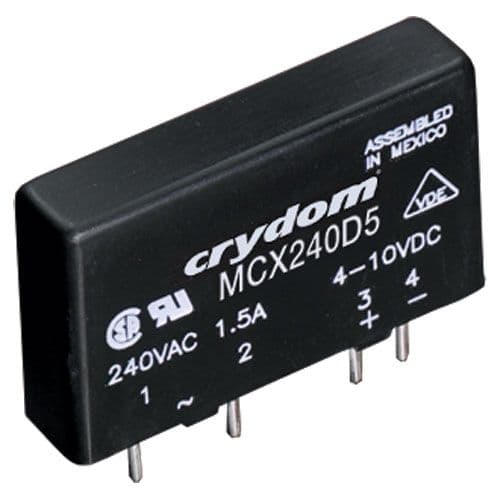

The MCXE240D5R is a solid state relay from Crydom with a maximum output voltage of 280V and a maximum output current of 5A. It has a control voltage of 32V and is designed for DC input. The relay is packaged in a SIP package and is available in quantities of 25. It is lead-free and RoHS compliant, making it suitable for a variety of applications. The MCXE240D5R is a SPST relay, meaning it has one normally open contact and one normally closed contact.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom MCXE240D5R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Control Voltage | 32V |
| Input Type | DC |
| Lead Free | Lead Free |
| Load Current | 5A |
| Max Output Current | 5A |
| Max Output Voltage | 280V |
| Mount | Through Hole |
| Output Voltage | 280V |
| Package Quantity | 25 |
| Packaging | Bulk |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | MCX |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
