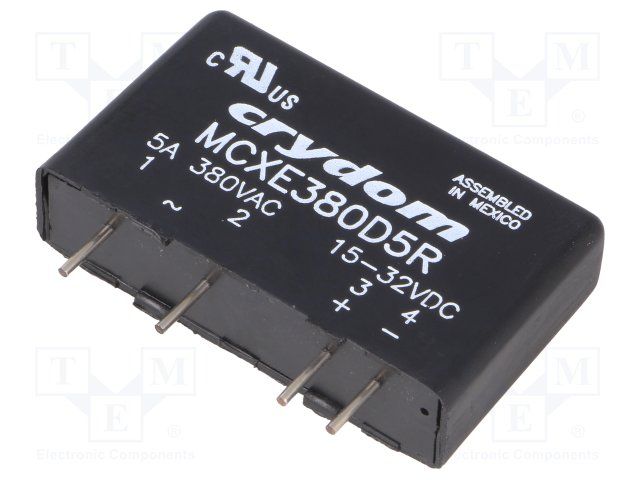

This solid state relay is a DC input device with a maximum output voltage of 530V and a maximum output current of 5A. It is packaged in a SIP package and is designed for through hole mounting. The relay is lead free and RoHS compliant. It is available in a package quantity of 25 and is packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom MCXE380D5R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Input Type | DC |
| Lead Free | Lead Free |
| Load Current | 5A |
| Max Output Current | 5A |
| Max Output Voltage | 530V |
| Mount | Through Hole |
| Package Quantity | 25 |
| Packaging | Bulk |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | MCX |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
