AC & DC Output Solid State Relay featuring a 10A maximum output current and 60V maximum output voltage. This relay operates with a 12mA DC input current and offers 2.5kV isolation voltage. The module package is designed for DIN rail mounting and includes screw termination. Key specifications include an on-state resistance of 18mR and an operating temperature range of -30°C to 80°C.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Crydom MS11-CMX60D10 technical specifications.
General
| Package/Case | Module |
| Height | 54mm |
| Input Current | 12mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 85mm |
| Load Current | 10A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 10A |
| Max Output Voltage | 60V |
| Mount | DIN Rail |
| On-State Resistance | 18mR |
| Output Current | 10A |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | No |
| Series | MS11-CMX |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 12.5mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Crydom MS11-CMX60D10 Datasheet
Download the complete datasheet for Crydom MS11-CMX60D10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

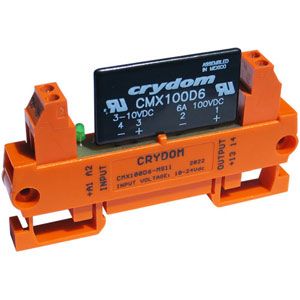

Product Images
