2-Ch DC Output Relay Module, 60V 3A, 15V DC In

Crydom

ODC15

Name: ODC15 Crydom
Brand: Crydom
SKU: ODC15

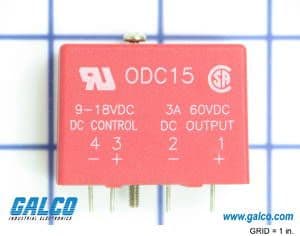

2-Ch DC Output Relay Module, 60V 3A, 15V DC In

2-channel DC output digital I/O module with SPST configuration, featuring a 3A output current and 60V DC output voltage. Operates with a 15V DC nominal input voltage and 20mA input current, up to a 20V DC max input voltage. Module dimensions are 43.1mm length, 31.8mm height, and 15.2mm width, with a depth of 31.7mm. Mountable via PCB, through hole, or plug-in with PC pin termination. Approvals include UL, CSA, and CE, with a lead-free and RoHS compliant design. Operating temperature range is -30°C to 80°C.

PackageModule

Current Rating10mA

MountingPCB, Through Hole, Plug-In

Quick Jump:

Technical Specifications

Crydom ODC15 technical specifications.

General

Approvals	UL, CSA, CE
Package/Case	Module
Color	Red
Current Rating	10mA
Depth	31.7mm
Height	31.8mm
Input Current	20mA
Input Type	DC
Lead Free	Lead Free
Length	43.1mm
Max Input Voltage (DC)	20V
Max Operating Temperature	80°C
Min Operating Temperature	-30°C
Mount	PCB, Through Hole, Plug-In
Nominal Input Voltage (DC)	15V
Number of Channels	2
Operating Supply Voltage	24V
Output Current	3A
Output Type	Digital
Output Voltage	60V
Package Quantity	25
RoHS Compliant	Yes
Series	ODC
Termination	PC Pins
Throw Configuration	SPST
Turn-Off Delay Time	0.1ms
Turn-On Delay Time	0.05ms
DC Rated Voltage	15V
Width	15.2mm
