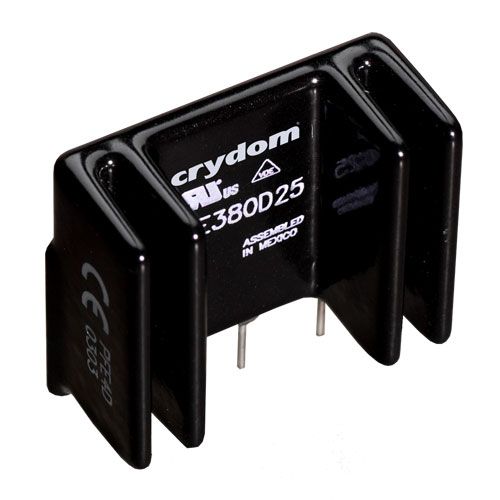

The PFE480D25 is a 25A solid state relay from Crydom, packaged in a SIP format with a package quantity of 20. It has a maximum operating temperature of 80°C and a minimum operating temperature of -30°C. The relay is RoHS compliant and has a lead-free termination. It is suitable for DC input and has a throw configuration of SPST.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom PFE480D25 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom PFE480D25 technical specifications.
| Package/Case | SIP |
| Depth | 22.8mm |
| Height | 34.3mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 43.1mm |
| Load Current | 25A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, PCB |
| Package Quantity | 20 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PF, PowerFin™ |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
