The PRGD48150 is a solid state relay from Crydom with a maximum output voltage of 530V and a maximum output current of 150A. It has a SPST throw configuration and is designed for panel or chassis mount with screw termination. The relay is lead free and RoHS compliant, making it suitable for a variety of applications. It is available in a plastic package with a quantity of 10 per bulk packaging.
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom PRGD48150 technical specifications.
General
| Input Type | DC |
| Lead Free | Lead Free |
| Load Current | 150A |
| Max Output Current | 150A |
| Max Output Voltage | 530V |
| Mount | Panel, Chassis Mount, Screw |
| Package Quantity | 10 |
| Packaging | Bulk |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PRG |
| Termination | Screw |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Crydom PRGD48150 Datasheet
Download the complete datasheet for Crydom PRGD48150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

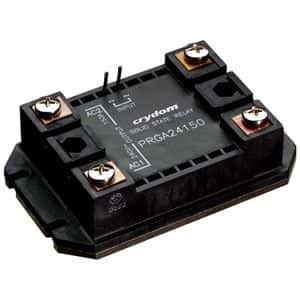

Product Images
