AC output solid state relay with a 15A load current rating and 130V AC output voltage. Features include a 240V AC maximum voltage rating, 2.5kV isolation voltage, and panel/chassis mount with screw termination. Operating temperature range is -30°C to 80°C, with CE and RoHS compliance. Dimensions are 1.799" L x 0.87" W x 2.299" H.
Current Rating15A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom RPC2415 technical specifications.
General
| Approvals | CE |
| Current Rating | 15A |
| Depth | 0.079inch |
| Height | 2.299inch |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Length | 1.799inch |
| Load Current | 15A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 200V |
| Max Voltage Rating (AC) | 240V |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 15A |
| Output Voltage | 130V |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | RPC |
| Termination | Screw |
| Thickness | 0.87inch |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 240V |
| Width | 45.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom RPC2415 Datasheet
Download the complete datasheet for Crydom RPC2415 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

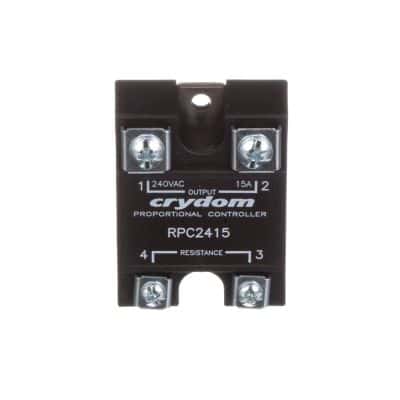

Product Images
