32MHz fundamental quartz crystal for frequency control and timing applications. Features a 3.2mm x 2.5mm ceramic surface mount package with gold contact plating. Offers a frequency tolerance and stability of 10ppm, with an ESR of 60 Ohms and a load capacitance of 10pF. Operates within a temperature range of -20°C to 70°C. Lead-free and RoHS compliant.
Frequency32MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS 403C11A32M00000 technical specifications.
General
| Package/Case | CSMD |
| Contact Plating | Gold |
| Depth | 2.5mm |
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 32MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 10pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operating Frequency | 32 MHz |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 403 |
| Series Resistance | 60R |
Compliance
| RoHS | Compliant |
Datasheet
CTS 403C11A32M00000 Datasheet
Download the complete datasheet for CTS 403C11A32M00000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

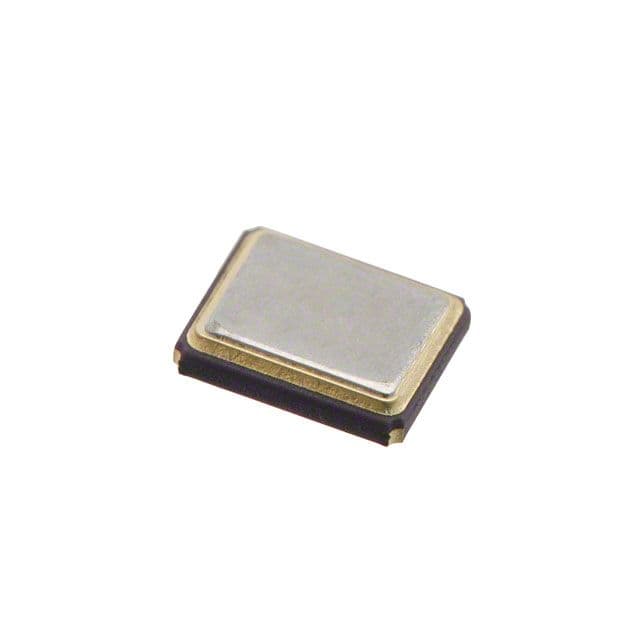

Product Images
