Surface mount quartz crystal operating at 16 MHz. Features a frequency tolerance of 30 ppm and frequency stability of 50 ppm. Equipped with gold contact plating and a 13 pF load capacitance. Housed in a CSMD package with dimensions of 5mm length, 3.2mm width, and 3.2mm depth. This lead-free, RoHS-compliant component is supplied on tape and reel.
Frequency16MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS 405C35B16M00000 technical specifications.
General
Package/Case
CSMD
Contact Plating
Gold
Depth
3.2mm
ESR (Equivalent Series Resistance)
50R
Frequency
16MHz
Frequency Stability
50ppm
Frequency Tolerance
30ppm
Height
0.041inch
Lead Free
Lead Free
Length
5mm
Load Capacitance
13pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Frequency
16 MHz
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
405
Series Resistance
50R
Termination
SMD/SMT
Tolerance
30ppm
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
CTS 405C35B16M00000 Datasheet
Download the complete datasheet for CTS 405C35B16M00000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

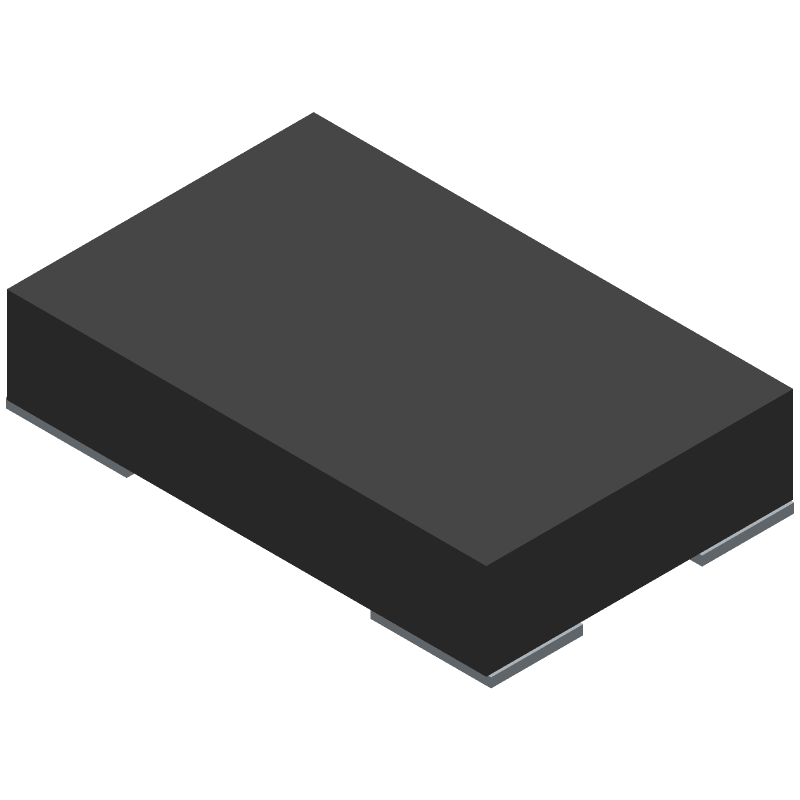

Product Images
