Surface mount thick film resistor array featuring 4 isolated 0 Ohm elements in a 1206 (3216 metric) case code. Each resistor element is rated for 62.5mW and housed within a molded 8-pin package with concave terminations and matte tin plating. Operating across a temperature range of -55°C to 125°C, this lead-free and RoHS compliant component is supplied on tape and reel.
Package0603
Resistance0R
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS 742C083000XP technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 0603 |
| Circuit Type | Isolated |
| Contact Plating | Tin, Matte |
| Depth | 1.6mm |
| Height | 0.028inch |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Resistors | 4 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Per Element | 62.5mW |
| Radiation Hardening | No |
| Resistance | 0R |
| RoHS Compliant | Yes |
| Series | 742 |
| Technology | THICK FILM |
| Terminal Pitch | 0.8mm |
| Termination | Concave |
| Tolerance | 5% |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
CTS 742C083000XP Datasheet
Download the complete datasheet for CTS 742C083000XP to view detailed technical specifications.
No datasheet is available for this part.

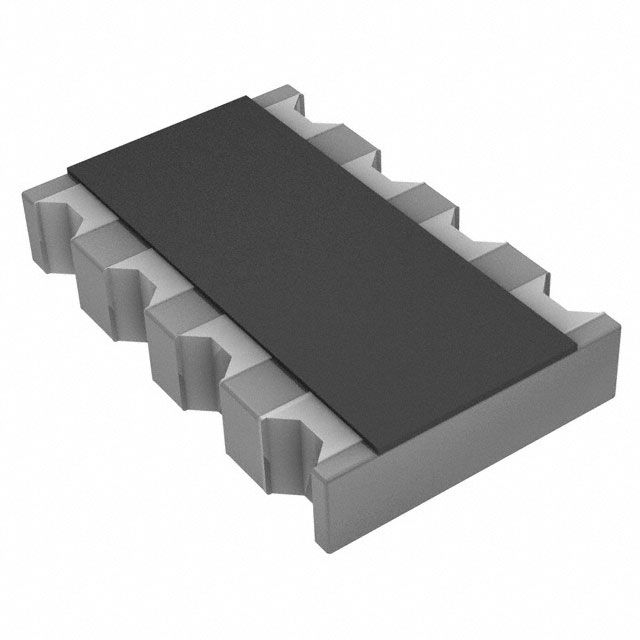

Product Images
