Surface mount resistor network featuring 4 isolated elements, each with a 56 Ohm resistance and 5% tolerance. This thick film component, housed in a 1206 (3216 metric) molded package, offers a power dissipation of 63mW with 62.5mW per element. Operating across a temperature range of -55°C to 125°C, it supports a working voltage of 50V and is supplied on tape and reel.
PackageMolded
Resistance56R
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS 742C083560JP technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
Molded
Circuit Type
Isolated
Contact Plating
Tin, Matte
Depth
1.6mm
Height
0.028inch
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Elements
4
Number of Resistors
4
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
63mW
Power Per Element
62.5mW
Radiation Hardening
No
Resistance
56R
RoHS Compliant
Yes
Series
742
Size Code
0603
Technology
THICK FILM
Terminal Pitch
0.8mm
Termination
Concave
Tolerance
5%
Width
0.063inch
Working Voltage
50V
Compliance
RoHS
Compliant
Datasheet
CTS 742C083560JP Datasheet
Download the complete datasheet for CTS 742C083560JP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

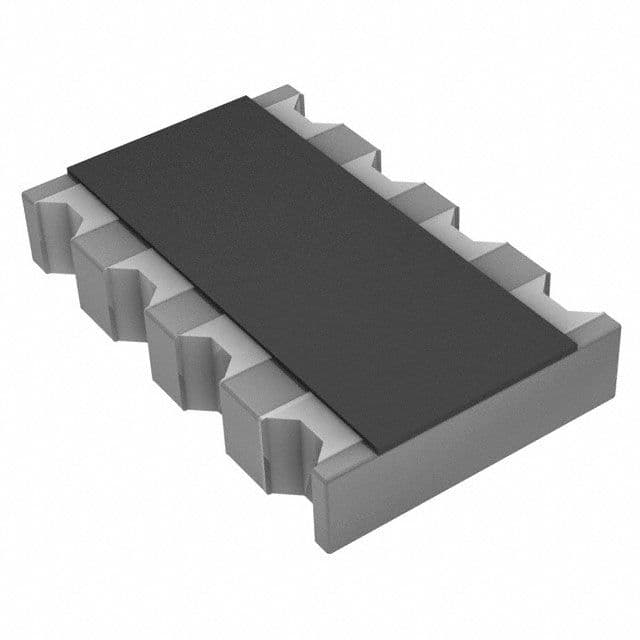

Product Images
