This 16-contact bussed resistor network is designed for surface mount applications and features a maximum operating temperature range of -55°C to 125°C. The network is rated for a maximum power per element of 80mW and has a resistance of 4.7kΩ. It is packaged in a SOIC package and is available in rail or tube packaging.
PackageSOIC
Resistance4.7kR
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS 766161472G technical specifications.
General
| Package/Case | SOIC |
| Circuit Type | Bussed |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 16 |
| Number of Resistors | 15 |
| Packaging | Rail/Tube |
| Power Per Element | 80mW |
| Resistance | 4.7kR |
| RoHS Compliant | No |
| Series | 766 |
| Thickness | 1.55mm |
| Tolerance | 2% |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Not Compliant |
Datasheet
CTS 766161472G Datasheet
Download the complete datasheet for CTS 766161472G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

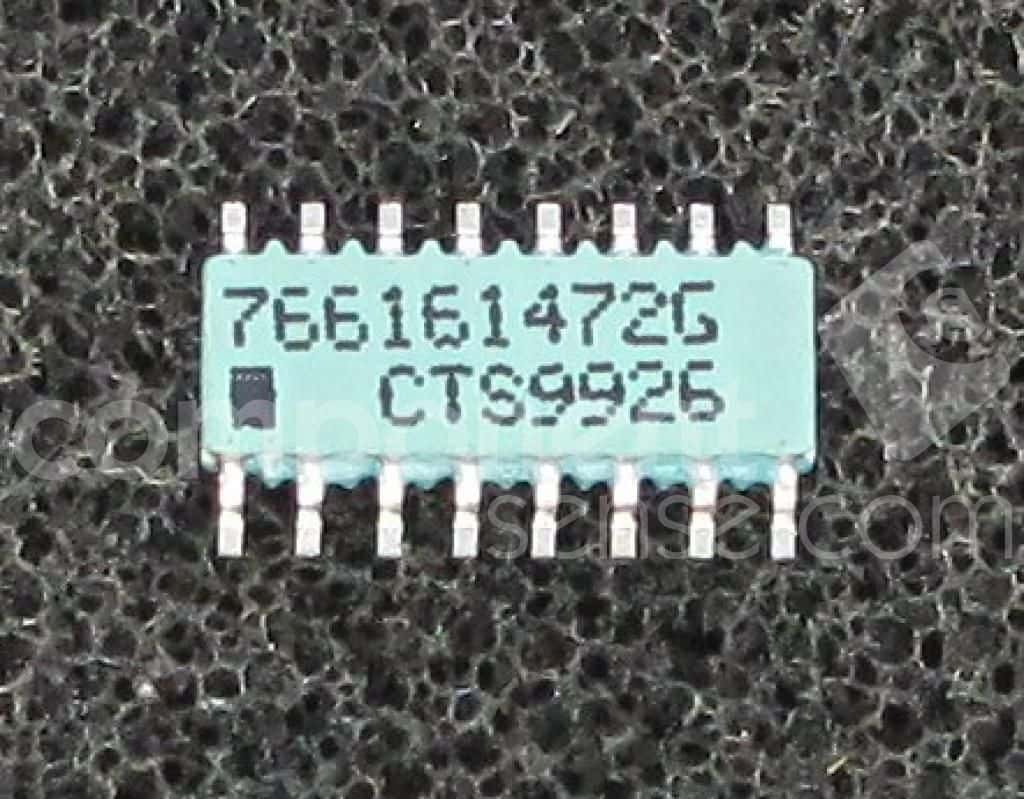

Product Images
