The CTS 768205131APTR13 is a dual terminator resistor network with 36 resistors, each rated at 330 ohms with a 2% tolerance. It is packaged in a surface mount SOIC package with a gull wing termination and a terminal pitch of 1.27mm. The network is designed to operate over a temperature range of -55°C to 125°C and is rated for 100mW of power per element. The resistor network is RoHS compliant and is available on tape and reel for easy surface mount assembly.
PackageSOIC
Resistance330R
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS 768205131APTR13 technical specifications.
General
| Package/Case | SOIC |
| Circuit Type | Dual Terminator |
| Contact Plating | Copper, Tin, Silver |
| Length | 13.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Resistors | 36 |
| Packaging | Tape and Reel |
| Power Per Element | 100mW |
| Resistance | 330R |
| RoHS Compliant | Yes |
| Series | 768 |
| Terminal Pitch | 1.27mm |
| Termination | Gull Wing |
| Tolerance | 2% |
Compliance
| RoHS | Compliant |
Datasheet
CTS 768205131APTR13 Datasheet
Download the complete datasheet for CTS 768205131APTR13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

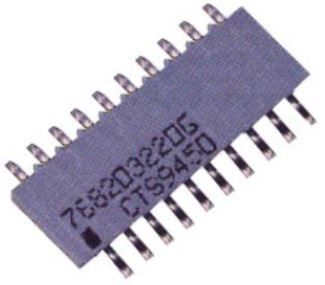

Product Images
