CTS
CB3-3C-10M0000
HCMOS/TTL Output Clock Oscillator, 1.5MHz Min, 107MHz Max, 10MHz Nom, GREEN, CERAMIC PACKAGE-4
Frequency10MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS CB3-3C-10M0000 technical specifications.
General
Package/Case
CSMD
Depth
5mm
Frequency
10MHz
Frequency Stability
50ppm
Height
0.067inch
Lead Free
Lead Free
Length
7mm
Load Capacitance
50pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Current
25mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
CB3
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
CTS CB3-3C-10M0000 Datasheet
Download the complete datasheet for CTS CB3-3C-10M0000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

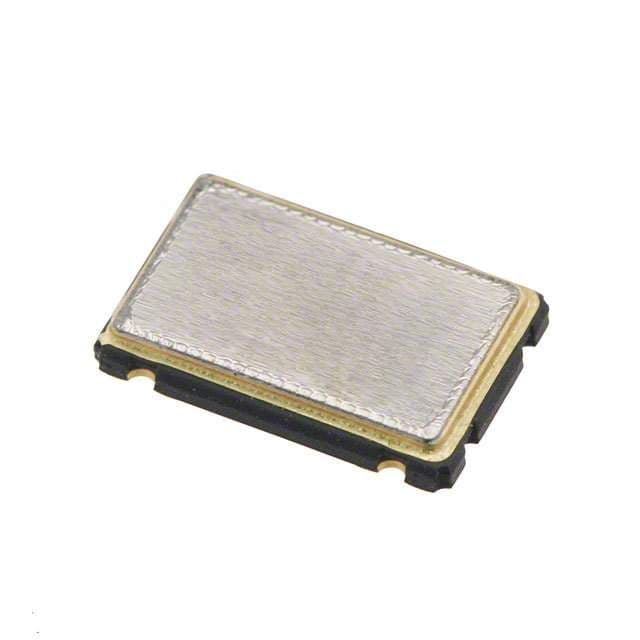

Product Images
