Surface mount crystal oscillator operating at 40MHz with ±50ppm frequency stability. Features HCMOS/TTL output, 50pF load capacitance, and a 3.3V supply voltage. Encased in a 4-pin SMD package with gold contact plating, this component offers a wide operating temperature range of -40°C to 85°C and a maximum supply current of 40mA. RoHS compliant and lead-free.
Frequency40MHz
PackageCSMD
MountingSurface Mount
Quick Jump:
Technical Specifications
CTS CB3LV-3I-40M0000 technical specifications.
General
| Package/Case | CSMD |
| Contact Plating | Gold |
| Depth | 5mm |
| Frequency | 40MHz |
| Frequency Stability | 50ppm |
| Height | 0.067inch |
| Lead Free | Lead Free |
| Length | 7mm |
| Load Capacitance | 50pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 40mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Frequency | 40 MHz |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CB3LV |
| Termination | SMD/SMT |
| Width | 0.197inch |
Compliance
| RoHS | Compliant |
Datasheet
CTS CB3LV-3I-40M0000 Datasheet
Download the complete datasheet for CTS CB3LV-3I-40M0000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

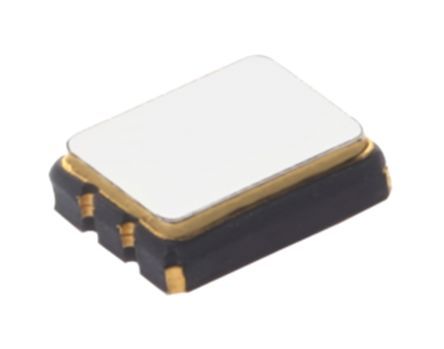

Product Images
