CTS
MP111
Series - Fundamental Quartz Crystal, 11.0592MHz Nom, ROHS COMPLIANT, RESISTANCE WELD, METAL, HC-49/U, 2 PIN
Frequency11.0592MHz
MountingThrough Hole
Quick Jump:
Technical Specifications
CTS MP111 technical specifications.
General
Depth
3.8mm
ESR (Equivalent Series Resistance)
30R
Frequency
11.0592MHz
Frequency Stability
50ppm
Frequency Tolerance
30ppm
Height
0.53inch
Lead Free
Lead Free
Length
10.85mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Frequency
11.0592 MHz
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
MP
Series Resistance
30R
Termination
Radial
Tolerance
30ppm
Width
3.8mm
Compliance
RoHS
Compliant
Datasheet
CTS MP111 Datasheet
Download the complete datasheet for CTS MP111 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

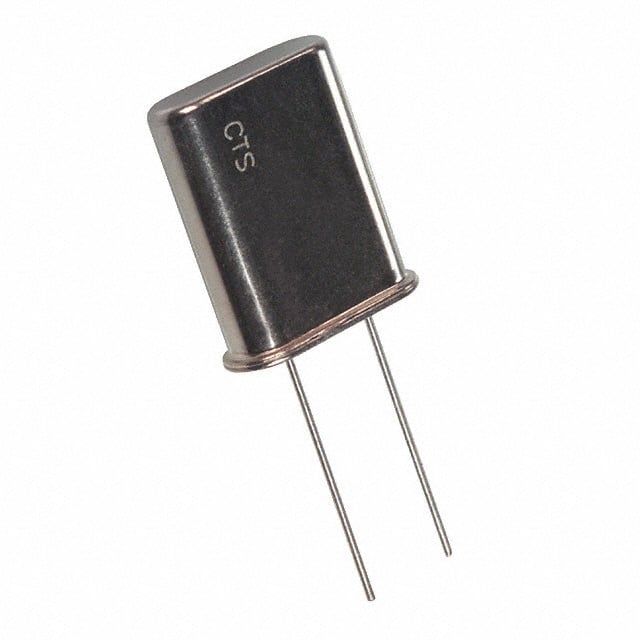

Product Images
