CTS
MP122
Parallel - Fundamental Quartz Crystal, 12.288MHz Nom, ROHS COMPLIANT, RESISTANCE WELD, METAL, HC-49/U, 2 PIN
Frequency12.288MHz
MountingThrough Hole
Quick Jump:
Technical Specifications
CTS MP122 technical specifications.
General
Depth
3.8mm
ESR (Equivalent Series Resistance)
30R
Frequency
12.288MHz
Frequency Stability
50ppm
Frequency Tolerance
30ppm
Height
0.53inch
Lead Free
Contains Lead
Length
10.85mm
Load Capacitance
32pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
MP
Series Resistance
30R
Termination
Radial
Tolerance
30ppm
Width
3.8mm
Compliance
RoHS
Compliant
Datasheet
CTS MP122 Datasheet
Download the complete datasheet for CTS MP122 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

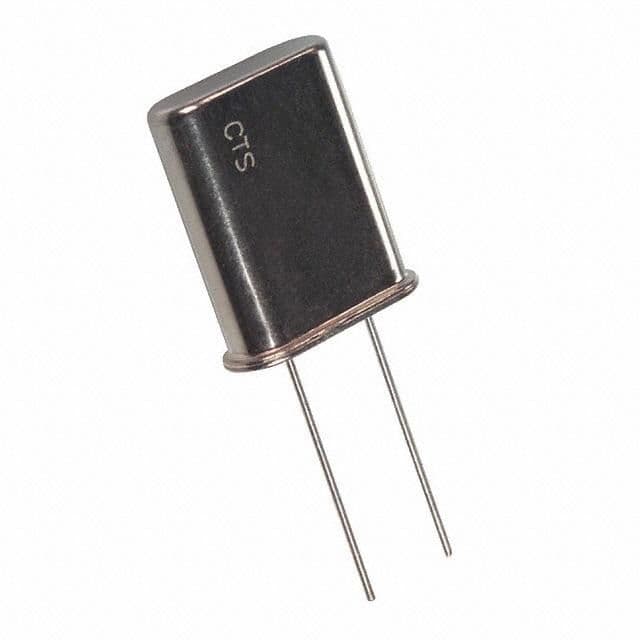

Product Images
