Board mount DC/DC converter with a 1.8 Vdc, 500mA output, delivering 0.9 W of power. Features a wide 4.5~28 Vdc input range and an efficiency of 81%. Integrated over-temperature protection (OTP) and short-circuit protection (SCP) enhance reliability. Packaged in a SIP for through-hole mounting, with dimensions of 0.46 x 0.3 x 0.4 inches. Operates across a temperature range of -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power900mW
Quick Jump:
Technical Specifications
CUI P7805-Q12-S1R8-S technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 500mA |
| Current - Output 2 | -400mA |
| Efficiency | 81% |
| Features | OTP, SCP |
| Height | 0.4inch |
| Lead Free | Lead Free |
| Length | 0.46inch |
| Max Input Voltage | 28V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 900mW |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 900mW |
| Package Quantity | 43 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Series | P7805-S |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | -1.8V |
| Width | 0.3inch |
Compliance
| RoHS | Not Compliant |
Datasheet
CUI P7805-Q12-S1R8-S Datasheet
Download the complete datasheet for CUI P7805-Q12-S1R8-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

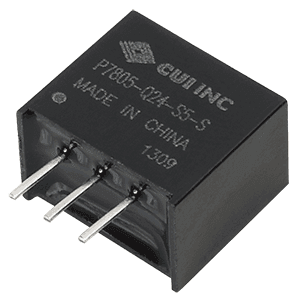

Product Images
