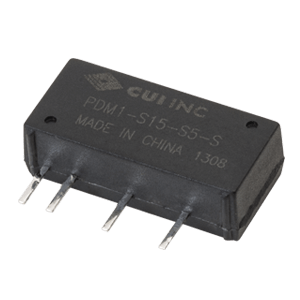

Board mount DC/DC converter with a 5Vdc, 200mA output, delivering 1W of power. Features a 4.5-5.5Vdc input range, 1.5kV isolation voltage, and 80% efficiency. Operates across a -40°C to 105°C temperature range and includes short-circuit protection. Packaged in a SIP for through-hole mounting.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PDM1-S5-S5-S technical specifications.
General
Package/Case
SIP
Current - Output 1
200mA
Efficiency
80%
Features
SCP
Height
0.37inch
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.77inch
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Power Dissipation
1W
Mount
Through Hole
Number of Outputs
1
Output Power
1W
Package Quantity
25
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PDM1-S
Voltage - Output 1
5V
Weight
0.084658oz
Width
0.24inch
Compliance
RoHS
Compliant
Datasheet
CUI PDM1-S5-S5-S Datasheet
Download the complete datasheet for CUI PDM1-S5-S5-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
