PackageDIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
CUI PDM2-S12-S12-D technical specifications.
General
Package/Case
DIP
Efficiency
84%
Features
SCP
Height
0.32inch
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.8inch
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
167mA
Max Power Dissipation
2W
Mount
Through Hole
Number of Outputs
1
Output Power
2W
Package Quantity
25
Packaging
Bulk
RoHS Compliant
Yes
Series
PDM2-D (2W)
Voltage - Output 1
12V
Weight
0.084658oz
Width
0.4inch
Compliance
RoHS
Compliant
Datasheet
CUI PDM2-S12-S12-D Datasheet
Download the complete datasheet for CUI PDM2-S12-S12-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

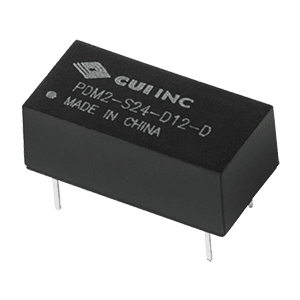

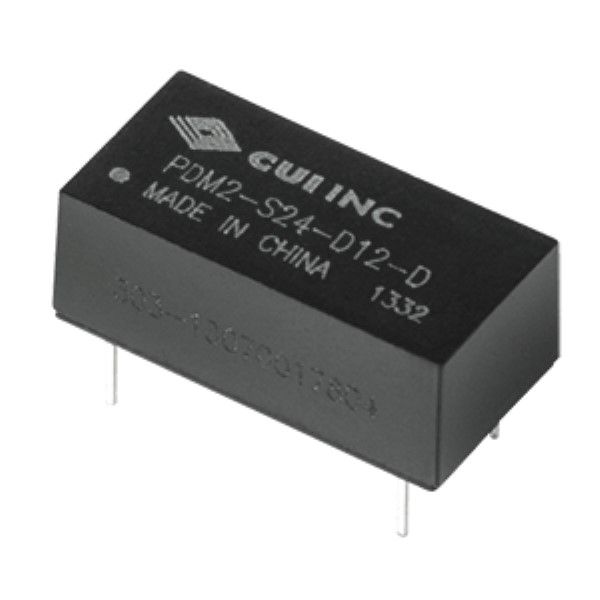

Product Images
