2W isolated DC/DC converter with dual 5V and -5V outputs, each rated for 200mA. Features a 21.6-26.4 Vdc input range and 84% efficiency. SIP package for through-hole mounting, offering 1.5kV isolation and short-circuit protection. Operates across a -40°C to 105°C temperature range.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications

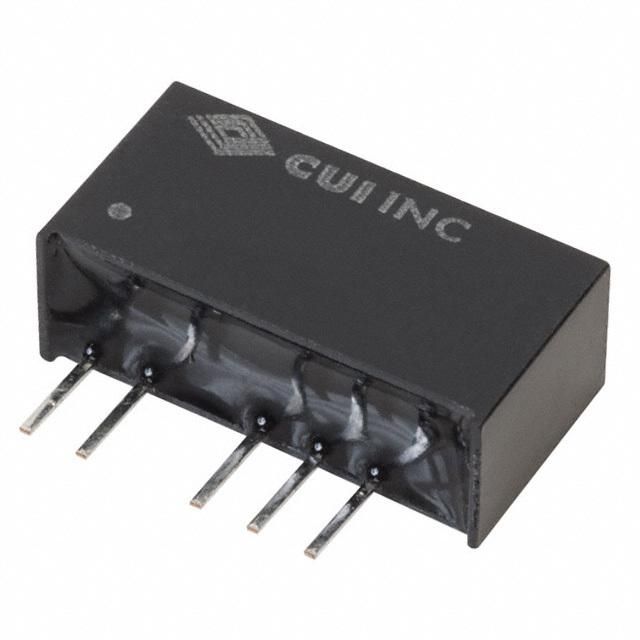

CUI PDM2-S24-D5-S technical specifications.
General
Package/Case
SIP
Current - Output 1
200mA
Current - Output 2
200mA
Efficiency
84%
Features
SCP
Height
0.39inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.77inch
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Power Dissipation
2W
Mount
Through Hole
Number of Outputs
2
Output Power
2W
Output Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PDM2-S
Voltage - Output 1
5V
Voltage - Output 2
-5V
Weight
0.084658oz
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
CUI PDM2-S24-D5-S Datasheet
Download the complete datasheet for CUI PDM2-S24-D5-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
