Board mount DC/DC converter, 1W output power, featuring a 3.3Vdc, 303mA output. Input voltage range spans 10.8-13.2 Vdc with 1.5kV isolation voltage. Operating temperature range is -40°C to 105°C, with 80% efficiency and short circuit protection. Packaged in DIP for through-hole mounting.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PDS1-S12-S3-D technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 303mA |
| Efficiency | 80% |
| Features | SCP |
| Height | 8.2mm |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 303mA |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 1W |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | PDS1-D (1W) |
| Voltage - Output 1 | 3.3V |
| Weight | 0.063493oz |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
CUI PDS1-S12-S3-D Datasheet
Download the complete datasheet for CUI PDS1-S12-S3-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

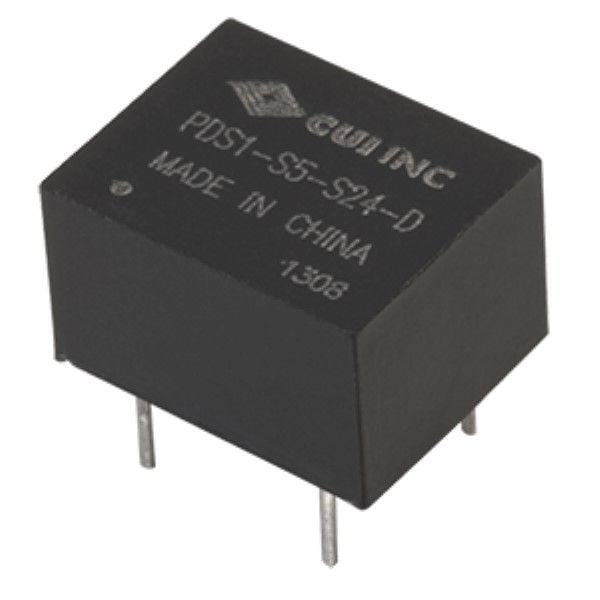

Product Images
