1W isolated DC/DC converter with 24V output voltage and 42mA output current. Features a 21.6-26.4Vdc input range, 82% efficiency, and short-circuit protection. Housed in a SIP package with through-hole mounting, this component offers 1.5kV isolation and operates from -40°C to 105°C.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PDS1-S24-S24-S technical specifications.
General
Package/Case
SIP
Current - Output 1
42mA
Efficiency
82%
Features
SCP
Height
0.39inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.46inch
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Power Dissipation
1W
Mount
Through Hole
Number of Outputs
1
Output Power
1W
Output Voltage
24V
Package Quantity
43
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PDS1-S
Voltage - Output 1
24V
Weight
0.042329oz
Width
0.24inch
Compliance
RoHS
Compliant
Datasheet
CUI PDS1-S24-S24-S Datasheet
Download the complete datasheet for CUI PDS1-S24-S24-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

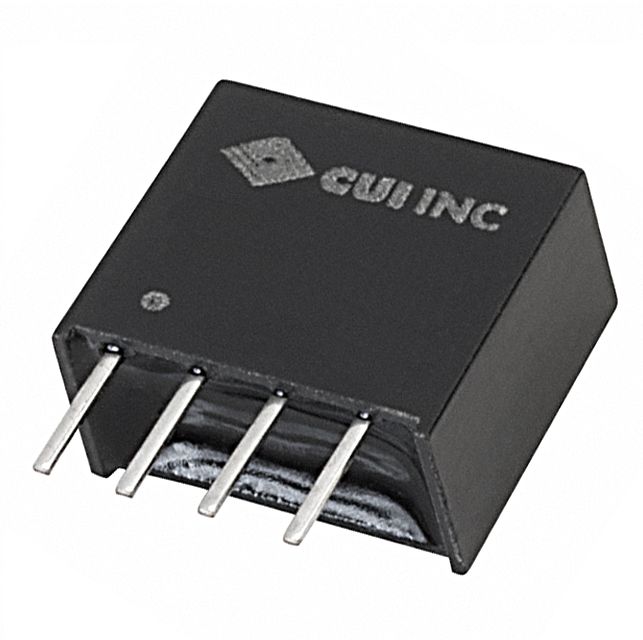

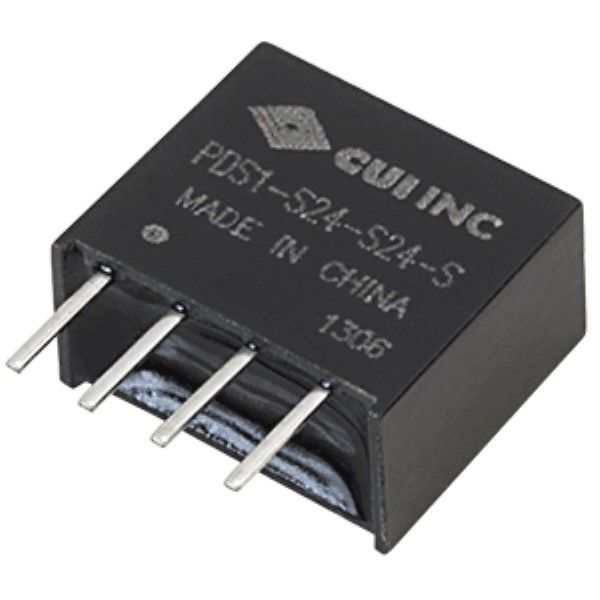

Product Images
