Isolated DC/DC converter, board mount, 1W output power, 5Vdc output voltage, 200mA output current. Features a 21.6-26.4 Vdc input range, 1.5kV isolation voltage, and 80% efficiency. Packaged in DIP for through-hole mounting, operating temperature range of -40°C to 105°C. Includes short-circuit protection (SCP) and is RoHS compliant.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PDS1-S24-S5-D technical specifications.
General
Package/Case
DIP
Current - Output 1
200mA
Efficiency
80%
Features
SCP
Height
0.3inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.5inch
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Power Dissipation
1W
Mount
Through Hole
Number of Outputs
1
Output Power
1W
Output Voltage
5V
Package Quantity
40
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PDS1-D
Voltage - Output 1
5V
Weight
0.063493oz
Width
0.39inch
Compliance
RoHS
Compliant
Datasheet
CUI PDS1-S24-S5-D Datasheet
Download the complete datasheet for CUI PDS1-S24-S5-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

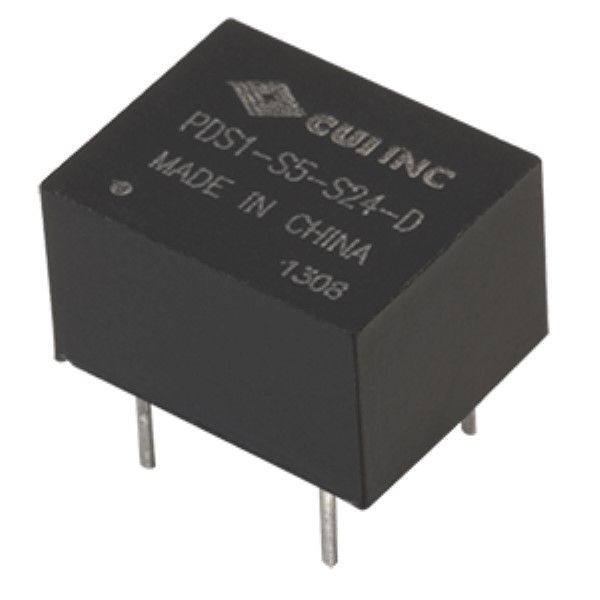

Product Images
