Board mount DC/DC converter, 1W output power, 5Vdc output voltage, 200mA max output current. Features a wide 21.6-26.4 Vdc input range with 1.5kV isolation. Operates efficiently at 80% and is housed in an SMD/SMT package for surface mounting. This lead-free, RoHS compliant component offers short-circuit protection and a broad operating temperature range of -40°C to 105°C.
PackageSMD/SMT
MountingSurface Mount
Power1W
Quick Jump:
Technical Specifications
CUI PDS1-S24-S5-M technical specifications.
General
| Package/Case | SMD/SMT |
| Efficiency | 80% |
| Features | SCP |
| Height | 0.28inch |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 0.5inch |
| Max Input Voltage | 26.4V |
| Min Input Voltage | 21.6V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Power | 1W |
| Output Voltage | 5V |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | PDS1-M |
| Voltage - Output 1 | 5V |
| Width | 0.33inch |
Compliance
| RoHS | Compliant |
Datasheet
CUI PDS1-S24-S5-M Datasheet
Download the complete datasheet for CUI PDS1-S24-S5-M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

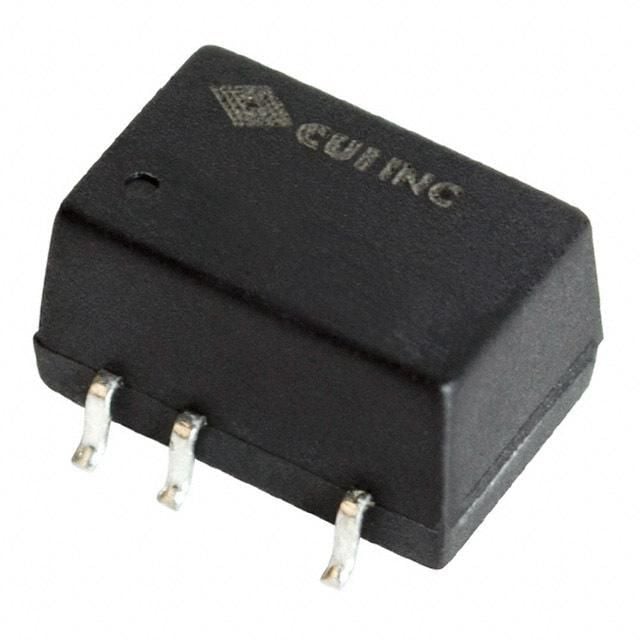

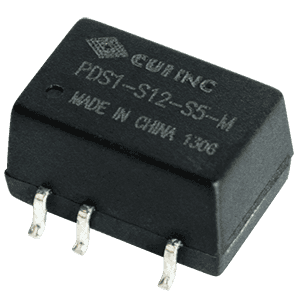

Product Images
