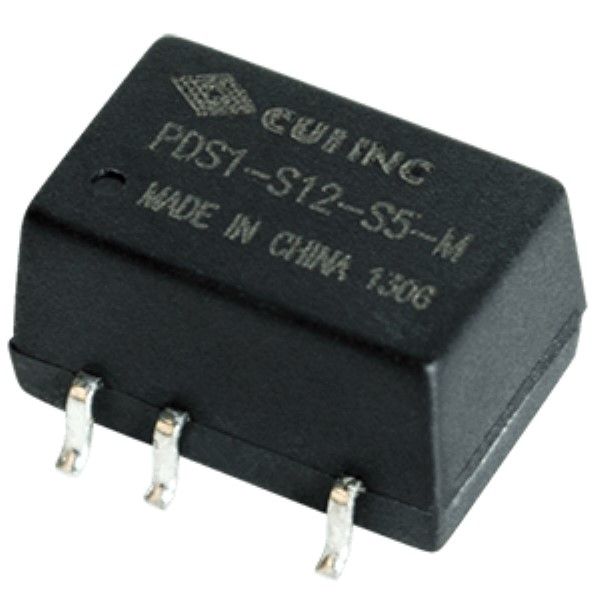

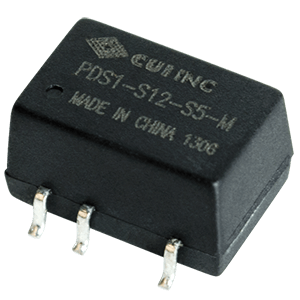

1W isolated DC-DC converter module with 12V output voltage and 83mA maximum output current. Features 1.5kV isolation voltage, 80% efficiency, and short-circuit protection (SCP). Surface mount package with dimensions of 12.7mm length, 8.3mm width, and 7.25mm height. Operates from a 4.5V to 5.5V input voltage range and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CUI PDS1-S5-S12-M-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Current - Output 1 | 84mA |
| Efficiency | 80% |
| Features | SCP |
| Height | 7.25mm |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 83mA |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Power | 1W |
| Output Voltage | 12V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | PDS1-M (1W) |
| Voltage - Output 1 | 12V |
| Weight | 0.063493oz |
| Width | 8.3mm |
| RoHS | Compliant |
