Board mount DC/DC converter with 3.3V output voltage and 303mA output current, delivering 1W of output power. Features an isolated design with 1.5kV isolation voltage and a wide input range of 4.5-5.5Vdc. Operates efficiently at 80% and includes short-circuit protection (SCP). Housed in a DIP package with through-hole mounting, this lead-free and RoHS compliant component is suitable for operation between -40°C and 105°C.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PDS1-S5-S3-D technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 303mA |
| Efficiency | 80% |
| Features | SCP |
| Height | 0.3inch |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 0.5inch |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 303mA |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 1W |
| Output Voltage | 3.3V |
| Package Quantity | 43 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | PDS1-D |
| Voltage - Output 1 | 3.3V |
| Weight | 0.063493oz |
| Width | 0.39inch |
Compliance
| RoHS | Compliant |
Datasheet
CUI PDS1-S5-S3-D Datasheet
Download the complete datasheet for CUI PDS1-S5-S3-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

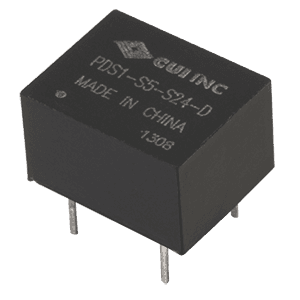

Product Images
