Board mount DC/DC converter, 1W output power, featuring a 3.3Vdc output voltage and 303mA maximum output current. Input voltage range is 4.5~5.5 Vdc. Offers 1.5kV isolation voltage and 80% efficiency. SIP package, through-hole mount, with short circuit protection. Operates from -40°C to 105°C.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PDS1-S5-S3-S technical specifications.
General
Package/Case
SIP
Current - Output 1
303mA
Efficiency
80%
Features
SCP
Height
0.32inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.5inch
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
303mA
Max Power Dissipation
1W
Mount
Through Hole
Number of Outputs
1
Output Power
1W
Output Voltage
3.3V
Package Quantity
43
Packaging
Bulk
RoHS Compliant
Yes
Series
PDS1-S
Voltage - Output 1
3.3V
Weight
0.042329oz
Width
0.4inch
Compliance
RoHS
Compliant
Datasheet
CUI PDS1-S5-S3-S Datasheet
Download the complete datasheet for CUI PDS1-S5-S3-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

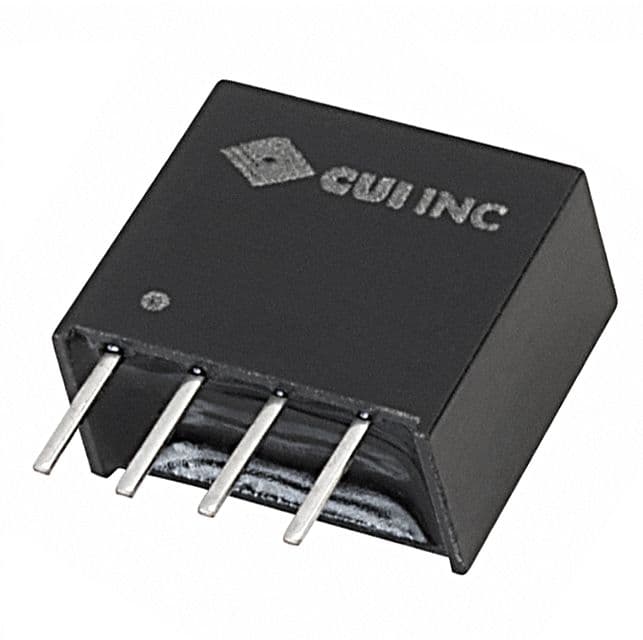

Product Images
