1W isolated DC/DC converter with dual 12V and -12V outputs, delivering 42mA per output. Features a 10.8-13.2Vdc input range, 81% efficiency, and robust protection including OVP, OCP, OTP, and SCP. This board mount converter is housed in a SIP package with through-hole mounting, offering 3kV isolation and operating across a -40°C to 105°C temperature range.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI PEM1-S12-D12-S technical specifications.
General
Package/Case
SIP
Current - Output 1
42mA
Current - Output 2
42mA
Efficiency
81%
Features
OVP, OCP, OTP, SCP
Height
0.37inch
Isolation
Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
0.77inch
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Power Dissipation
1W
Mount
Through Hole
Number of Outputs
2
Output Power
1W
Output Voltage
12V
Package Quantity
25
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PEM1-S
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
0.084658oz
Width
0.24inch
Compliance
RoHS
Compliant
Datasheet
CUI PEM1-S12-D12-S Datasheet
Download the complete datasheet for CUI PEM1-S12-D12-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

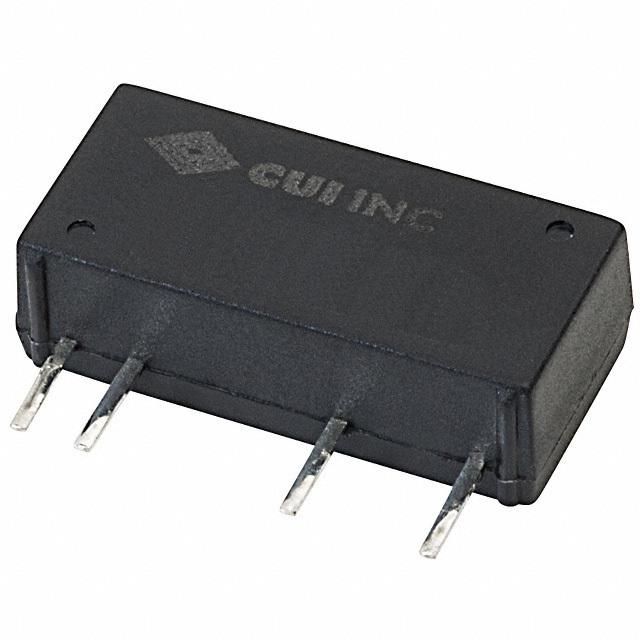

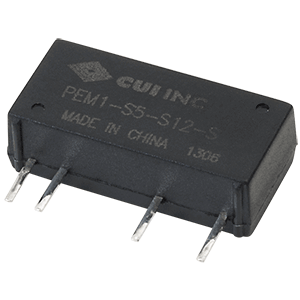

Product Images
