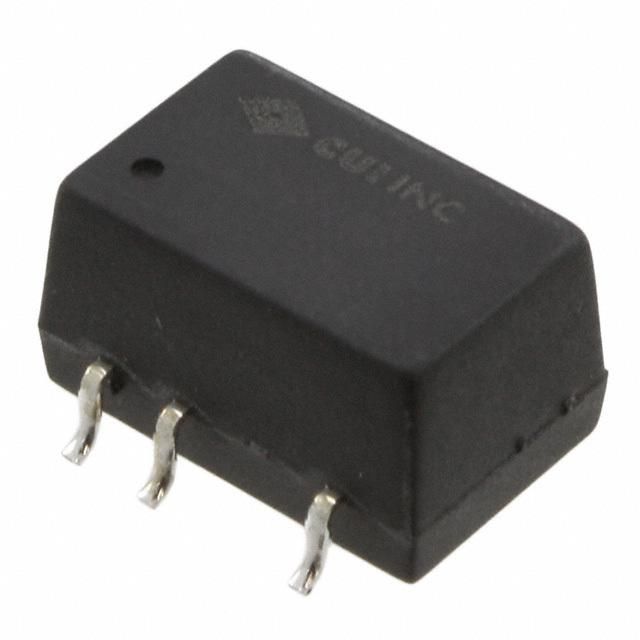

1W DC/DC Converter, Board Mount, SMD/SMT package. Features 9V single output, 4.5V to 5.5V input range, and 111mA maximum output current. Offers 3kV isolation voltage, 80% efficiency, and short circuit protection (SCP). Operates from -40°C to 105°C, with a maximum power dissipation of 1W. Surface mount design, RoHS compliant, supplied on cut tape.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CUI PES1-S5-S9-M-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
CUI PES1-S5-S9-M-TR technical specifications.
| Package/Case | SMD/SMT |
| Efficiency | 80% |
| Features | SCP |
| Isolation Voltage | 3kV |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 111mA |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | PES1-M (1W) |
| Voltage - Output 1 | 9V |
| RoHS | Compliant |
