50W DC-DC Converter, Board Mount. Features a 24 Vdc output voltage and 2.083A output current. Operates with an 18-36 Vdc input range and achieves 91% efficiency. Offers 1.5kV isolation voltage and a wide operating temperature range of -40°C to 85°C. Dimensions are 76mm x 31.5mm x 21.5mm.
MountingChassis Mount
Power50W
Quick Jump:
Technical Specifications
CUI PQA50-D24-S24-T technical specifications.
General
Current - Output 1
2.083A
Efficiency
91%
Height
21.5mm
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
76mm
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
50W
Mount
Chassis Mount
Number of Outputs
1
Output Power
50W
Package Quantity
10
Packaging
Tray
RoHS Compliant
No
Series
PQA50-T (50W)
Voltage - Output 1
24V
Weight
2.010616oz
Width
31.5mm
Compliance
RoHS
Not Compliant
Datasheet
CUI PQA50-D24-S24-T Datasheet
Download the complete datasheet for CUI PQA50-D24-S24-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

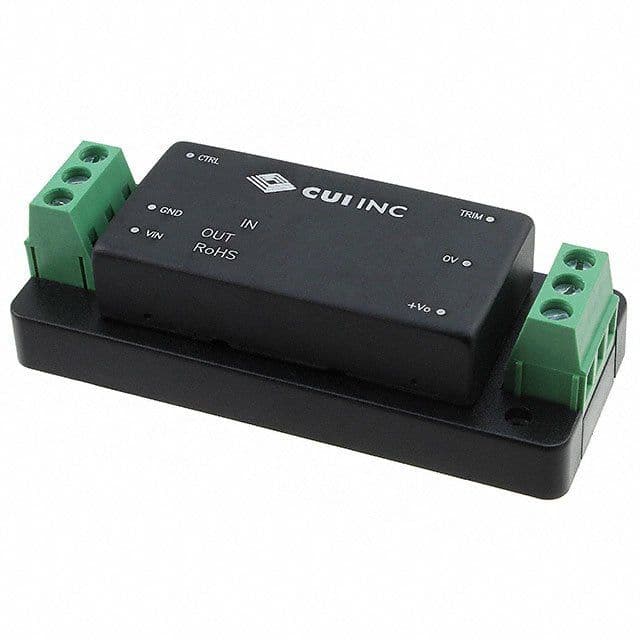

Product Images
