3W isolated DC/DC converter with dual 15/-15 Vdc outputs, each rated for 100mA. Features an 18-36 Vdc input range and 1.5kV isolation voltage. This board mount converter offers OCP and SCP protection, operates efficiently at 84%, and is housed in a DIP package for through-hole mounting. Designed for a wide temperature range of -40°C to 105°C, it is also lead-free and RoHS compliant.
PackageDIP
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
CUI PQB3-D24-D15-D technical specifications.
General
Package/Case
DIP
Current - Output 1
100mA
Current - Output 2
100mA
Efficiency
84%
Features
OCP, SCP
Height
0.4inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
1.25inch
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Power Dissipation
3W
Mount
Through Hole
Number of Outputs
2
Output Power
3W
Output Voltage
15V
Package Quantity
15
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PQB3-D
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
0.493835oz
Width
0.8inch
Compliance
RoHS
Compliant
Datasheet
CUI PQB3-D24-D15-D Datasheet
Download the complete datasheet for CUI PQB3-D24-D15-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

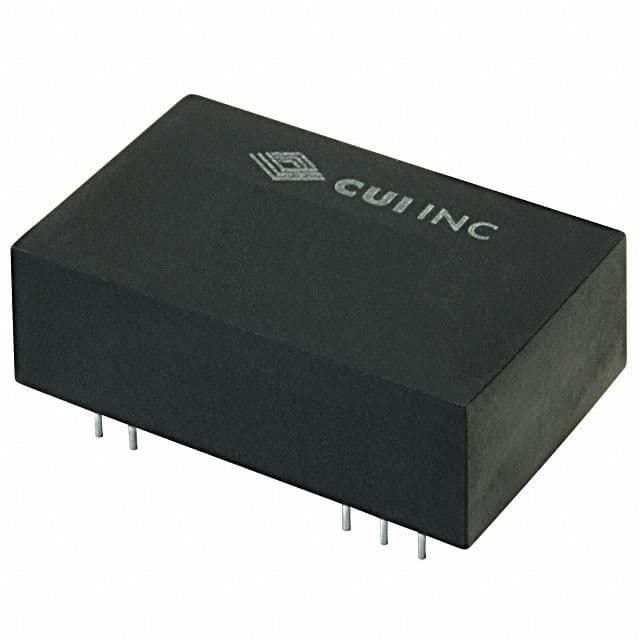

Product Images
